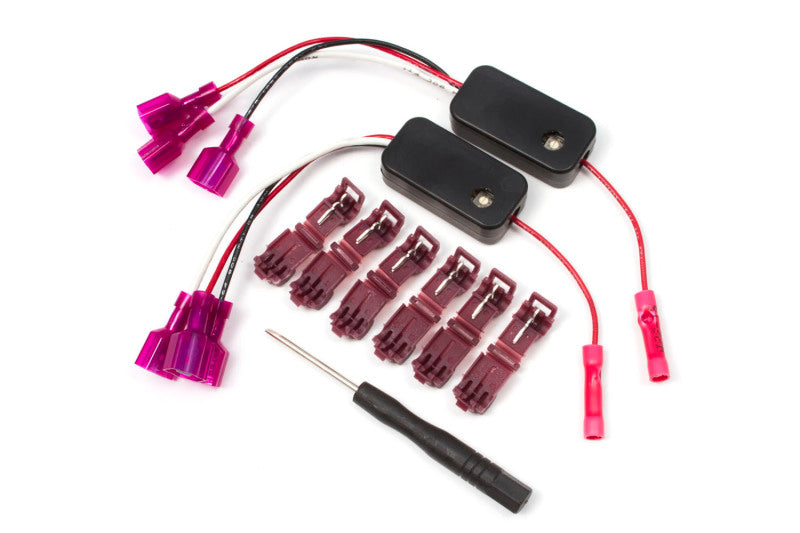

Diode Dynamics 2A LED PWM Dimmer with Bypass (Pair)
Diode Dynamics 2A LED PWM Dimmer with Bypass (Pair)
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • USA Delivery

    Free shipping on all orders over $125*

Diode Dynamics 2A LED PWM Dimmer with Bypass (Pair)

2 sold in last 8 hours
DIODD3018
In stock
$24.95
$24.95

customers are viewing this product
OverviewThis is a set dim level 12V PWM dimmer perfect for automotive use with dimming on the positive channel. Most other dimmers operate by modulating the negative side which makes it difficult to use remotely in a common-ground automotive environment.The total current capacity is 2 amps perfect for LED arrays angel eye rings LED bulbs or other LED components. 9-16V Operating Voltage.There's also a unique feature included: Instead of a simple input and output this module has two inputs DIM and HIGH.When a signal powers the DIM pin the module will output the PWM-dimmed signal at 50% brightness. Then when another signal is connected to HIGH the module will pass full power through for full brightness. The high output will always override the low output. Each input is protected against reverse current flow as well so they won't interfere with each other.This feature makes the module perfect for LED tail lamps or turn signals. It can be used with any LED ring bulb or array.Here's an example: take the positive 12V wire for any LED. Connect it to the OUTPUT of this module. Connect running light power to the DIM wire and turn signal power to the HIGH wire. This module does the rest! Your LED will function as a dimmed running light and then light up full power when turn signal is activated.Whether it's a running and brake light signal or a running and turn signal the module will switch between low and high brightness levels perfectly for you at an adjustable level of brightness.
